Note : Redux store debugging

Here is a little note about the debug of a Redux state managed web app, and for the example I will use angular with NGRX, but don't worry this tool works with pretty any of the most known spa frameworks.

What tools ?

• Chrome/Firefox Extension: Redux DevTools Extension First download this extension , it will represent your board on your browser when debugging: https://github.com/zalmoxisus/redux-devtools-extension.
• Npm Package @ngrx/store-devtool (ngrx purpose, optional) https://github.com/ngrx/platform/blob/master/docs/store-devtools/README.md.

npm install @ngrx/store-devtools --save

⚐ If you don't to add extra packages, you can follow the documentation of the browser extention, he explain how to configure it for any framework.

@NgModule({
    declarations: [
        // ...
    ],
    imports: [
        // ...
        StoreDevtoolsModule.instrument({
            maxAge: 10
        })
    ],
    providers: [
        // ...
    bootstrap: [AppComponent]
})

Dashboards

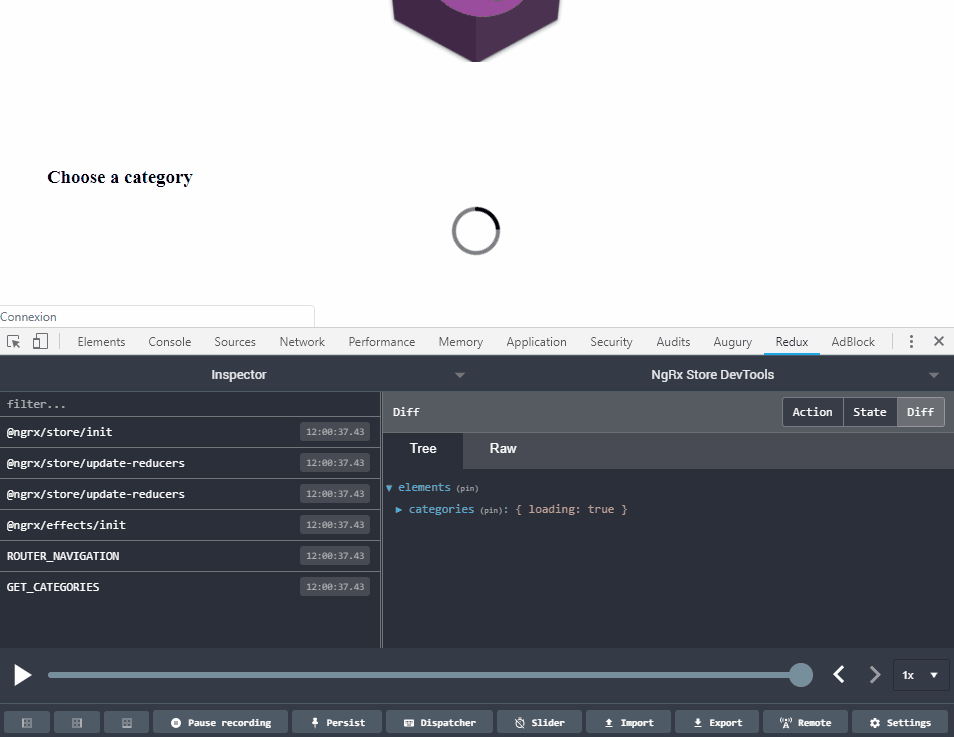

First you can see the left menu "Inspector", you can choose from 3 options:

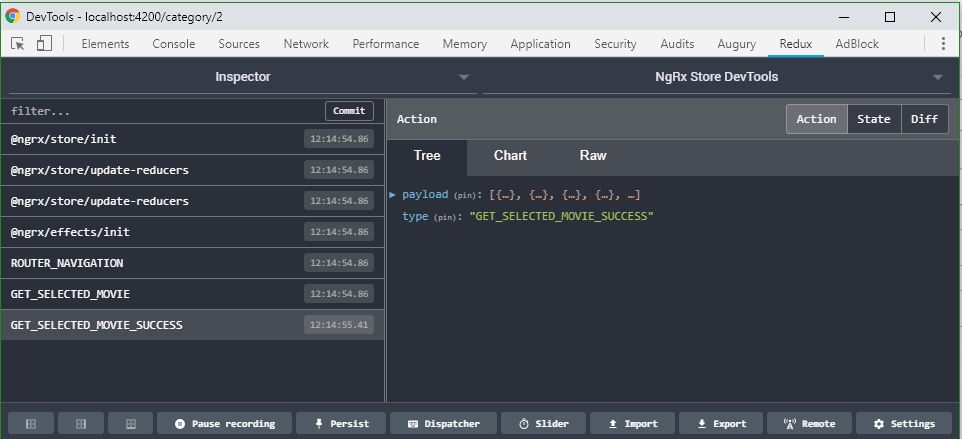

• Inspector: The classic view, in two parts

• On the left, the actions chronology
  Here you can see every dispatched actions. 3 triggers (visible if you hover your mouse over an action): - "jump" Navigate to the differents states - "skip" Exclude an action - In addition you are able to reorder actions with drag&drop maybe to replay a set of actions in a different order.
• On the right, the details of an action : - Choose "Action" to see the details of the object (type + action) - "State" means the current state at the moment of the action - Then "Diff" to compare the state before and after the action was applied
• Thoses datas ar visible in 3 modes "Tree" "Chart" and "Raw"

• "Log monitor", the same view but focused on the timestamp

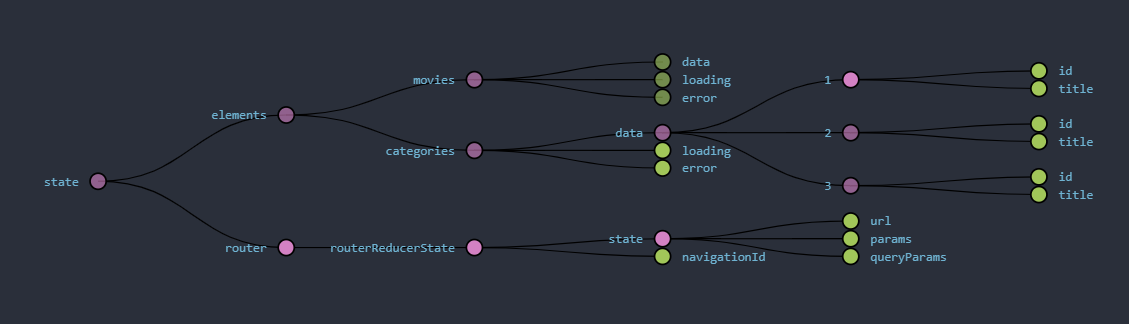

• And finally "Chart" which updates itself in real time while your application is running. Represents you global state.

Conclusion

• 🔥Import/export of state history (perfect for reproducing bugs)🔥
• "Time travelling" slider
• The possibility to jump on any state of the application
• Reordering dispatched actions

bonus

• You can dispatch actions to your app direclty from an input in the dashboard.
• Your are not limited to localhost, it can run on any website which allow it.

Enjoy debugging.
